The industrial rotary evaporator plays some crucial roles in facilitating industrial chemical reactions. They are larger, more potent than any other rotary evaporators, and well able to do better jobs on the whole. It is important to get to know about these wonderful pieces of appliances. Our introductory article below endeavors to do just that.

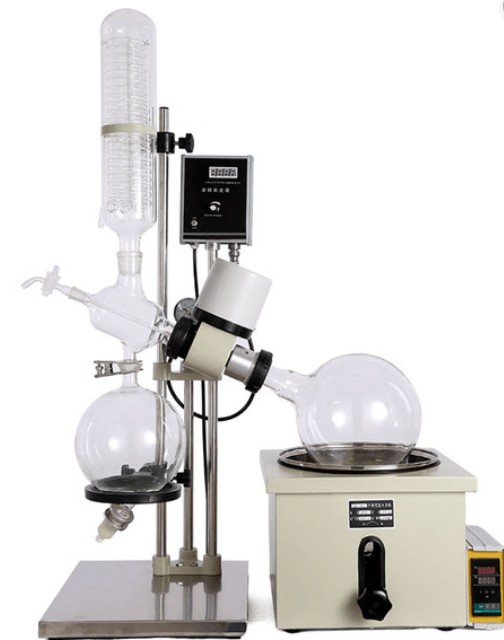

What is an Industrial Rotary Evaporator
A rotary evaporator is a piece of laboratory equipment. Its role is mainly to contain chemicals and other reactants. In doing so, it also provides a conducive environment for the reactions to occur and yield the desired ends. They are larger than the ordinary kinds of evaporators you find in the typical laboratory.
Due to their larger and more potent natures, these reactors find applicability in similarly larger installations and facilities. Among these are the pilot plants and small scale production units to the exceedingly large and fully-fledged facilities. This is also not to mention that they handle larger quantities of samples.
Other than facilitating the reactions of the various chemicals, the evaporators also let you boil your samples at lower temperatures. That is because they suck out the pressure levels to create a near-vacuum environment. This one reduces the boiling points of liquids to facilitate the boiling processes and times.
It is noteworthy that the industrial rotary evaporators are able to operate at wider temperature ranges. These stretch from a low of -15°C to a high of 160°C. This draws from the heating chamber which handles the higher temperatures and the condensation tube that handles the low temperatures.
The Specifications of WKIE Lab Rotary Evaporators
| Model | R-1010 | R-1020 | R-1050 | RE-1002 | RE-2002 | RE-3002 | RE-5002 |
| Rotation Flask | 10L | 20L | 50L | 10L | 20L | 30L | 50L |
| Bath Lift | Motor Lift | Motor Lift | Motor Lift | Hand Lift | Hand Lift | Hand Lift | Hand Lift |
| Condenser | Glassware: Vertical with dual-spiral glass tubing | Glassware: Vertical with dual-spiral glass tubing | Glassware: Vertical with dual-spiral glass tubing | Glassware: Vertical with dual-spiral glass tubing | Glassware: Vertical with dual-spiral glass tubing | Glassware: Vertical with dual-spiral glass tubing | Glassware: Vertical with dual-spiral glass tubing |
| Flask Rotation Speed | 0-120rpm | 0-120rpm | 0-120rpm | 0-120rpm | 0-120rpm | 0-120rpm | 0-120rpm |
| Motor Power | 250W | 250W | 250W | 180W | 180W | 250W | 250W |
| Receiving Flask | 5L | 10L | 20L | 5L | 10L | 20L | 20L |
| Vacuum Degree(Ultimate Pressure) | 20mbar | 20mbar | 20mbar | 20mbar | 20mbar | 20mbar | 20mbar |
| Heating Power(customizable) | 4KW | 4KW | 6KW | 3KW | 5KW | 8KW | 8KW |
| Temp. Control | PID from main heater, ON/OFF Control | PID from main heater, ON/OFF Control | PID from main heater, ON/OFF Control | PID from main heater, ON/OFF Control | PID from main heater, ON/OFF Control | PID from main heater, ON/OFF Control | PID from main heater, ON/OFF Control |
| Safety | Over-temp and fuse protections | Over-temp and fuse protections | Over-temp and fuse protections | Over-temp and fuse protections | Over-temp and fuse protections | Over-temp and fuse protections | Over-temp and fuse protections |
| Glass Material | High borosilicate glass 3.3 | High borosilicate glass 3.3 | High borosilicate glass 3.3 | High borosilicate glass 3.3 | High borosilicate glass 3.3 | High borosilicate glass 3.3 | High borosilicate glass 3.3 |
| Power Source | 220V 1ph, 50HZ(Customized: 110V) | 220V 1ph, 50HZ(Customized: 110V) | 220V 1ph, 50HZ(Customized: 110V) | 220V 1ph, 50HZ(Customized: 110V) | 220V 1ph, 50HZ(Customized: 110V) | 220V 1ph, 50HZ(Customized: 110V) | 220V 1ph, 50HZ(Customized: 110V) |

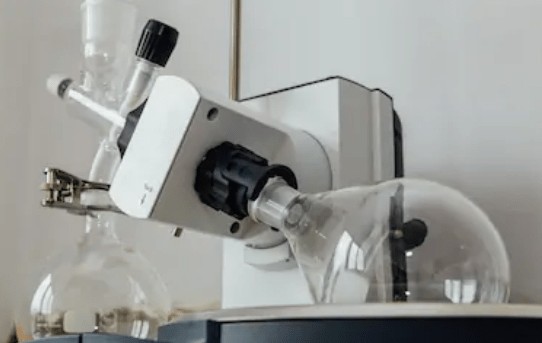

The Features of Industrial Rotary Evaporator
1. Temperature Sensor
Unlike the ordinary evaporators, these ones have the temperature sensors whose role is to detect any variations in the ambient temperatures. In case of any overheating, the sensor powers the bath off to avert any explosions or overheating. This way, it keeps you safe and peaceful at all times.

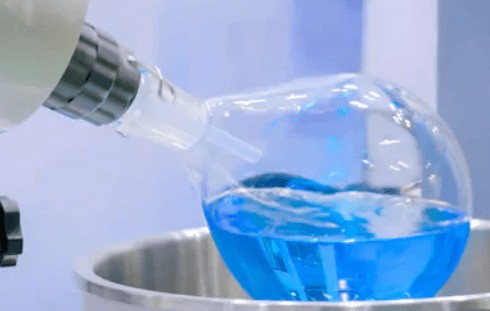

2. Integrated Evaporating Flask Support System
An integrated evaporating flash support system also forms a vital part of this evaporator. Courtesy of this wonderful feature, the evaporator simplifies the removal and operations thereof. In fact, only one person may handle and engage it. On account of this, it prevents any unnecessary hassles and confusion while in use.

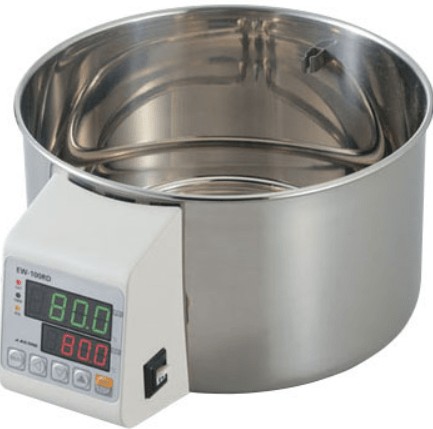

3. Automatic Water Bath Refill System
Also forming part of this evaporator is the automatic water bath refill system. This one holds the reactants and provides the environment necessary for your handling and reactions. It also comes equipped with an added control panel to allow for filling and the associated electronics.
4. Automatic Module
The automatic module comes as an option. It basically lets you manage continuous and uninterrupted operations of the distillation of the solvents. For this reason, you will enjoy the rare privilege of making use of the gadget in hours that are ordinarily odd like the night and weekends.

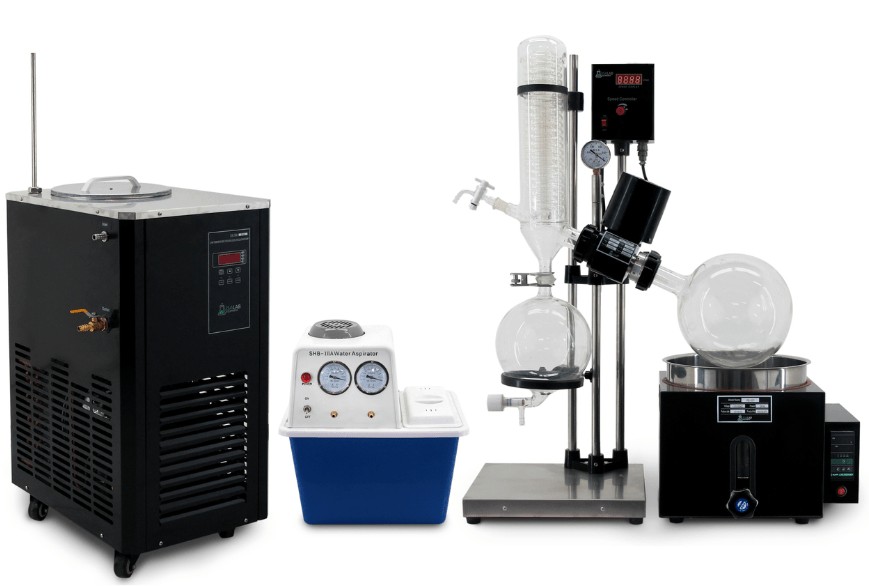

5. Automated Vacuum Distillation
We have already explained that the apparatus does boil water through the process of automated vacuum distillation. This one entails the elimination of excess air and pressure. When this happens, the boiling point is reduced considerably. As a result, only a little energy is expended in the entire process.
6. Gentle Thermal Treatment
In closing, the evaporator also incorporates a gentle thermal treatment. This feature mainly exists to handle those reactions which are ordinarily sensitive to higher temperature levels and variations. Courtesy of this feature, the evaporator allows for higher rates of evaporations at lower temperatures. This, in turn, brings about added comfort.

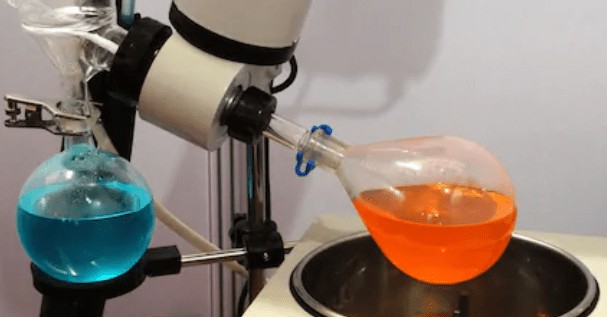

The Applications of Industrial Rotary Evaporator
1. Food Processing
These evaporators are extensively used in food processing or by food processing firms. Besides, they provide the environments needed for canning, preservations, and disinfections. Being large, they are able to handle many ingredients safely and conveniently. Their sterile natures also ward off the proliferation of germs.

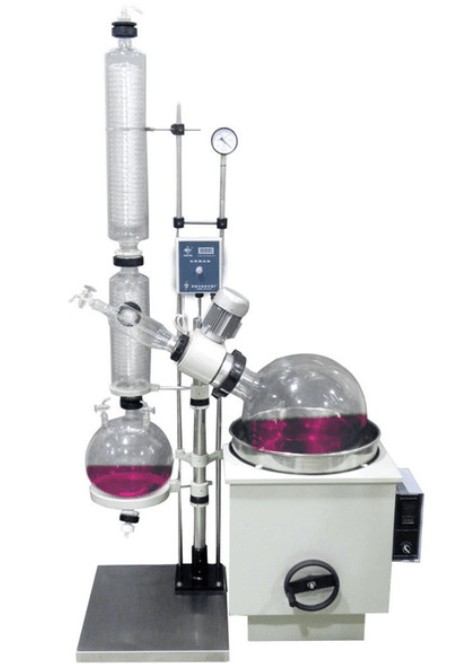

2. Manufacturing and Processing
Quite a number of manufacturing firms also employ the industrial rotary evaporators. In regards to this role, they handle a number of pertinent roles and chores. Among these are mixing the various ingredients, expediting the boiling and disinfection of germs, and handling many other pertinent chores.
3. Chemical Mixing
Being larger and more voluminous, the industrial rotary evaporators do play a vital role in facilitating the mixing of chemicals. These chemicals are employed as base elements for other more complicated items and products. The hard walls of the evaporators seal the ingredients firmly to prevent the same from exploding.
4. Pharmaceuticals
Perhaps no other industry employs these apparatus as extensively as the pharmaceuticals. This is a field that deals largely with drugs and their manufacture. The equipment needed for the jobs ordinarily has to be tougher and more resilient to the explosive nature of most chemicals that are used.

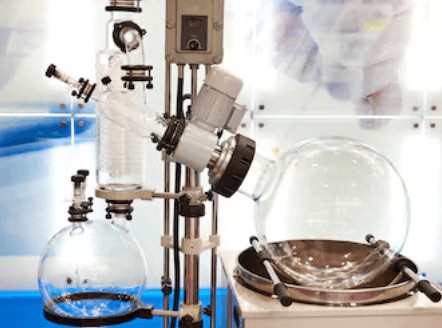

5. Industrial-Scale Experimentations
Some experiments are too large to be performed using the laboratory scale pieces of equipment. They have to employ only those apparatus that are similarly large enough to handle larger samples. The industrial rotary evaporators come in yet again. They have space and structure needed to do just that.
6. Extraction of Impurities
Just like their laboratory counterparts, these industrial-scale evaporators may also extract impurities from solvents. They use more or less similar tools, techniques and approaches to do the job. They, however, have the added advantage of being able to handle larger samples which is definitely more convenient.

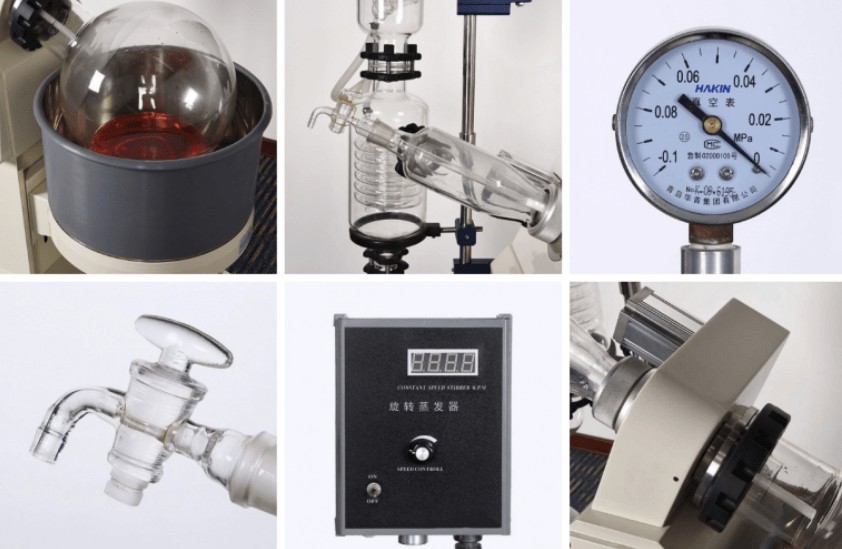

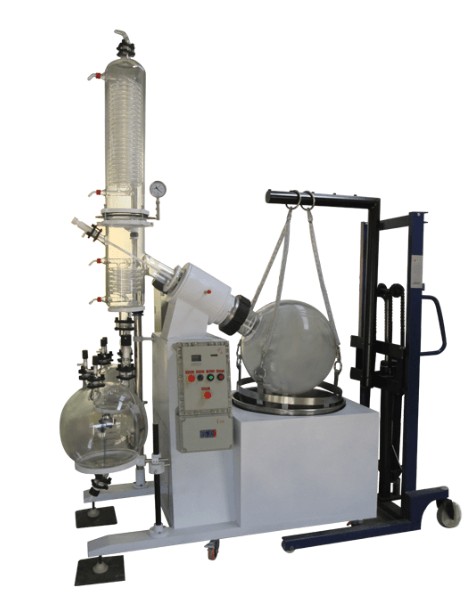

The Details of WKIE Lab Industrial Rotary Evaporator
So, you now know the information you need to go about making good use of this wonderful appliance. With this knowledge, we now expect you to do a good job. Simply use the insight we have furnished to obtain the best one for yourself.
We also expect you to appreciate the apparatus more and maintain it appropriately. What more could you possibly ask? Move with haste and acquire it today…
